Description

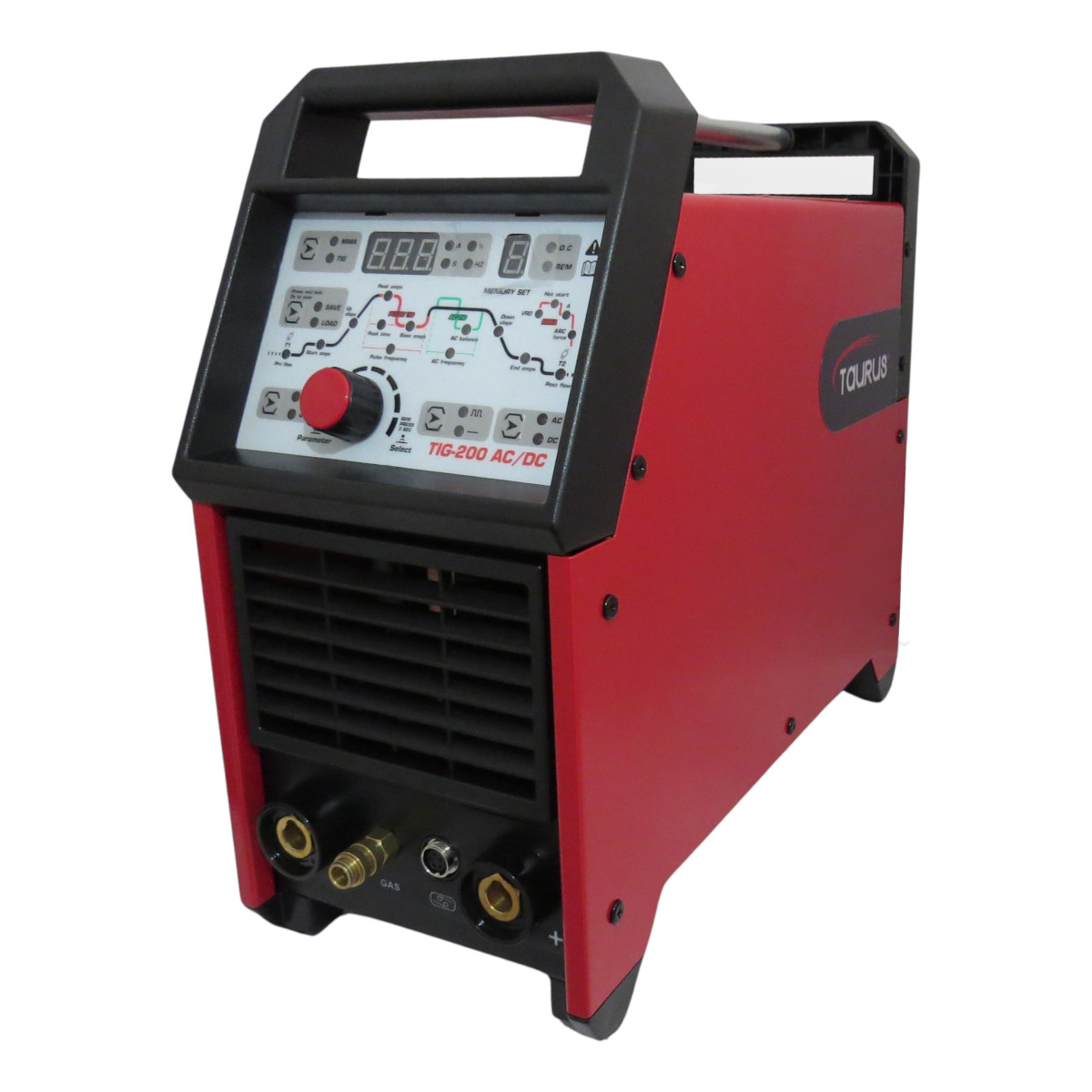

The Taurus TIG AC/DC 200A PULSE inverter is a robust, generator-friendly machine designed and manufactured for operation under demanding industrial conditions. The two main built-in functions, pulse welds and high frequency ignition, ensure professional ease of welding and high-quality welds. The pulse function facilitates control over the welding process and prevents burn-through on the workpiece. The high frequency ignition creates a very soft start arc as well as maximum arc control. This obviates the need to touch the workpiece with the tungsten electrode. Both functions have a great advantage when welding thin material. The Taurus TIG AC/DC 200A PULSE inverter’s selection panel allows welding with either AC or DC current – in AC mode for aluminium welding or in DC mode for all steel and steel alloy materials.
SOME KEY FEATURES
- Heavy duty.
- Soft, stable arc.
- High quality welds.
- LCD digital display.
- Pulse welding and high frequency ignition.
ACCESSORIES
- Earth clamp cable kit.
- Electrode holder cable kit.
- TIG torch.
- Argon flowmeter/
OPTIONAL EXTRA
- Foot control if AC welding is required (TA-FOOT-CONTROL)
SPECIFICATION | DESCRIPTION | ||||
PRODUCT CODE | TIG200AC/DC-P-SV | ||||
MODEL | TIG 200E AC/DC PULSE | ||||
RATED POWER SUPPLY INPUT | 230V SINGLE PHASE | ||||
DUTY CYCLE 40°C @ 10 MINUTES | 60% @ 155A ▪ 100% @ 120A | ||||
OPEN CIRCUIT VOLTAGE | 72V | ||||
WELDING CURRENT RANGE | 5 – 200A | ||||
DIMENSIONS(mm) AND NET WEIGHT(kg) | 465 x 146 x 278mm ▪ 10kg |
