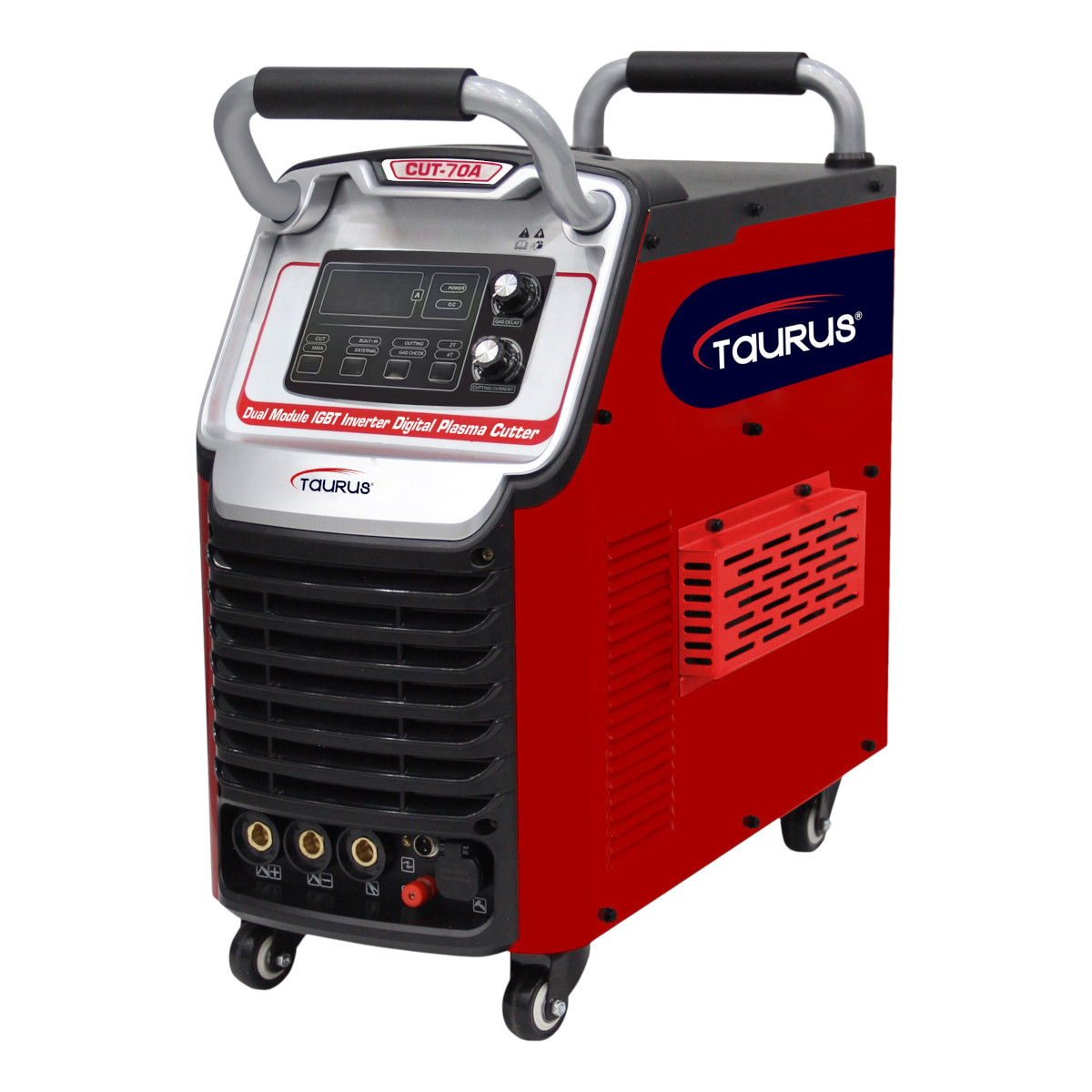

TAURUS PLASMA COMPRESSOR CUTTER-CUT70D-220/380V+P80 TORCH

Description

The Taurus Cut 70A with built-in compressor inverts the 50Hz power supply to a high-frequency, high-voltage power supply of up to 20KHz. The inversion process is facilitated by a powerful IGBT device followed by step-down rectification and pulse-width modulation (PWM) technology producing a high-power DC output suitable for cutting. The advanced inverter technology allows the construction of a smaller volume and light-weight, stable and reliable transformer with a 30% improved efficiency. This series of plasma cutting machines produce a concentrated, stable, powerful and fast-cutting arc at an ionized state of 10000-15000°C. The result is a super-smooth cutting surface on a reduced heat affected area which facilitates further processing.

The Taurus Cut 70A can be used for cutting various metals including stainless steel, aluminium, copper, cast iron and carbon steel. A narrow and clean-cut seam is produced with less effort and low deformation. The machines are suitable for use in the manufacturing industry, installation and maintenance, plate cutting, cutting holes, patching, beveling, pipe cutting and various other metal cutting applications.

The machines in this series are manufactured in accordance with IEC60974-1<Arc Welding Equipment-Part 1: Welding Power Sources>, Safety Requirements for Arc Welding Equipment.

SOME KEY FEATURES

• Built-in, high-power air compressor with stable air output suitable for extended use. External air source option can be switched quickly and may be more suited for an extended cutting operation.
• A 25% Voltage fluctuation safeguard.
• Phase-loss detection technology.
• Adopts non-contact, high-frequency arc starting as well as a pilot-arc function. Excellent instant-arc starting performance and a high success rate of arc starting.
• Air-flow detection ensures that a sufficient volume is delivered prior to starting the cutting process..
• Accurate preset cutting currents ensure energy efficiency and allow for cutting of materials with varying thickness.
• Narrow cutting seam, clean cutting edge and reduced deformation.
• The MMA function provides for welding with a variety of electrodes such as acid, alkaline and stainless steel and all in diameters ranging from 2.0mm to 5.0mm.

ACCESSORIES

• Earth clamp cable kit.
• P80 hand-held plasma torch.
