Description

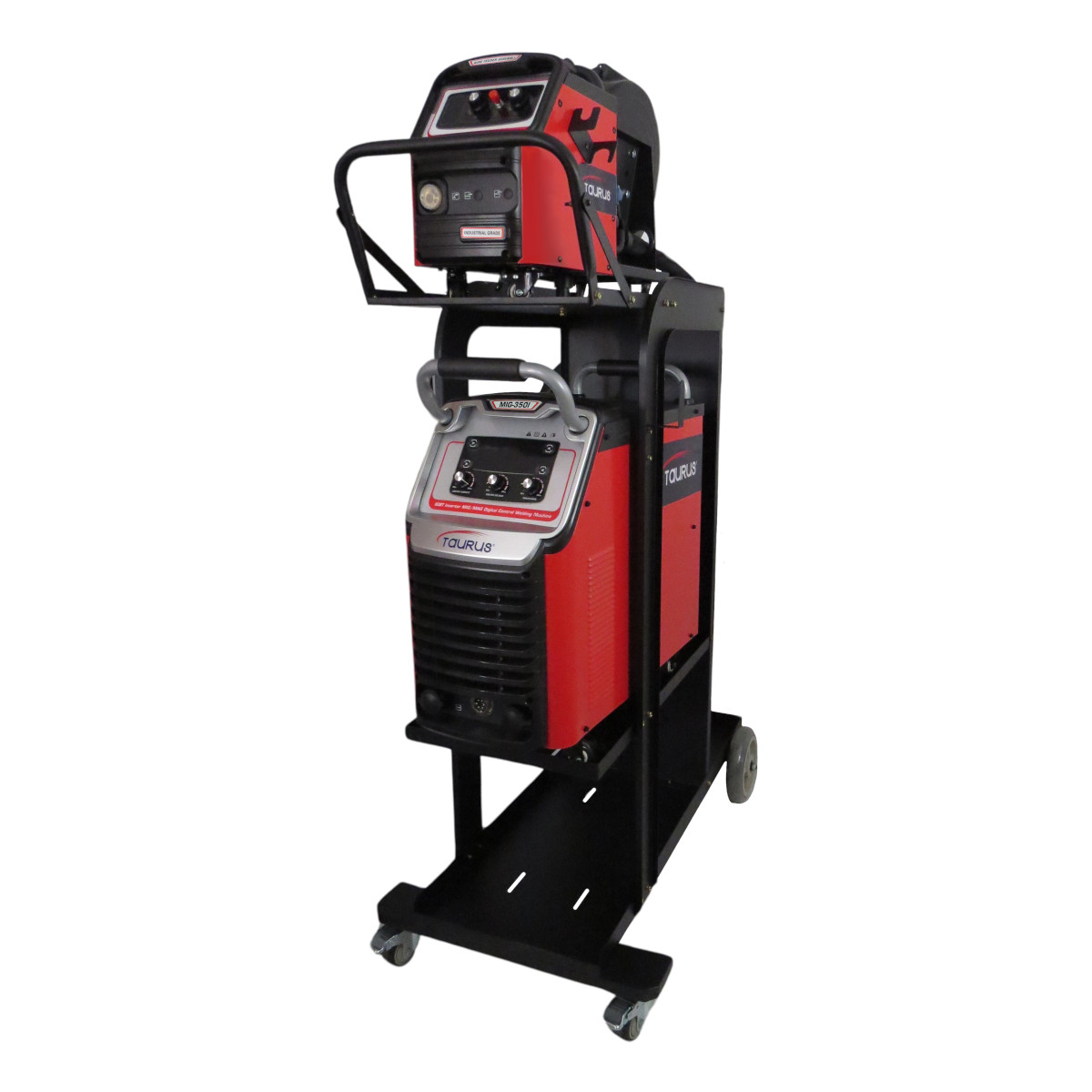

This Taurus MIG350I is a 380v, 500A MIG welding inverter machine. With it’s high-power IGBT and advanced inverter technology, it has good dynamic characteristics, stable arc, good welding quality and is easy to control. It’s a high performance semi-automatic welding machine for CO2 and mixed gas shielded welding. It can weld low carbon steel, low alloy steel, stainless steel, galvanized sheet, copper and other components, using Φ0.8-Φ1.6mm diameter stainless steel welding wire, steel wire and other solid wire. This Taurus MIG350I is widely used in industries such as electric power construction, shipbuilding, machinery manufacturing, building construction, fabrication and other industries. It has reasonable static characteristics and good dynamic performance and they are manufactured in accordance with IEC60974-1, Safety Requirements for Arc Welding Equipment.
SOME KEY FEATURES
- Precise digital output by digital CPU control system.
- All in one multiple welding functions allows for MIG gas welding, MIG flux core welding, DC MMA welding and DC lift TIG welding.
- Easy to move, energy saving, high efficiency and duty cycle with no noise from arc welding rectifier.
- The closed-loop control system ensures a more stable welding voltage in the case of grid voltage fluctuation and the change of arc length.
- An excellent arc self-regulation, and a stable welding process.
- Less spatter, high metal deposition rate, good welding bead sand less deformation.
- With self-locking function, it can greatly reduce the welder’s labour intensity when welding large-scale and long welding seam.
- MMA function is designed to weld various electrodes like acid, alkaline, stainless steel, cast iron, etc with excellent performance.
- Perfect protection circuit makes it safe, reliable and convenient for troubleshooting.
- The machine meets IP21S protection level to ensure its reliability in harsh environment.
ACCESSORIES
- Earth clamp cable kit.
- MIG torch.
- Argon flowmeter.
SPECIFICATION | DESCRIPTION |
PRODUCT CODE | TA-MIG350I |
MODEL | MIG350I |
POWER SUPPLY VOLTAGE | 380V THREE PHASE |
DUTY CYCLE 40°C @ 10 MINUTES | 60% @ 350A |
OPEN CIRCUIT VOLTAGE | 67V |
WELDING RANGE | 60 TO 350A |
WIRE DIAMETER | 0.8 TO 1.6mm |
PACKAGE DIMENSIONS(MM) AND NET WEIGHT(KG) | 710 x 385 x 680mm ▪ 18KG (PSU) 565 x 275 x 392mm ▪ 28KG (FEEDER) |
