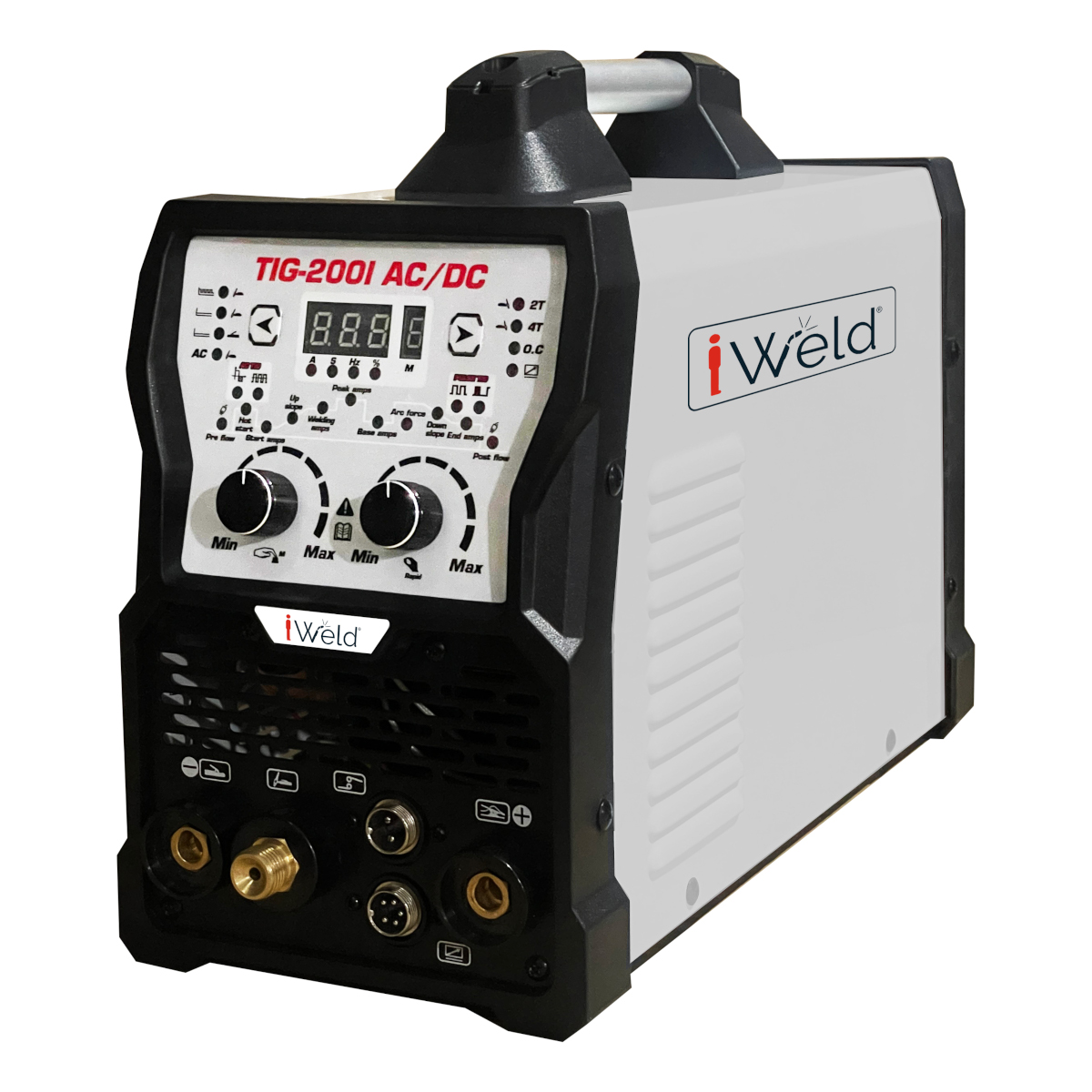

iWELD TIG200I AC/DC WELDER – 220V + WP17SB.4M.2P-E

Description

The iWELD TIG 200i AC/DC PULSE inverter is a robust, generator-friendly machine designed and manufactured for operation under demanding industrial conditions. The advanced power input system will detect and handle a voltage drop or a spike of up to 20%. This will not only safeguard the machine against damage resulting from erratic power supply, but will also ensure smooth, uninterrupted operation. The two main built-in functions, pulse welds  and high frequency ignition, ensure professional ease of welding and high-quality welds. The pulse function facilitates control over the welding process and prevents burn-through on the workpiece. The high frequency ignition creates a very soft start arc as well as maximum arc control. This obviates the need to touch the workpiece with the tungsten electrode. Both functions have a great advantage when welding thin material. The iWELD TIG 200i AC/DC PULSE inverter’s selection panel allows welding with either AC or DC current – in AC mode for aluminium welding or in DC mode for all steel and steel alloy materials. It has good static characteristics and their dynamic performance is equally good.

SOME KEY FEATURES

• Multi-function digital control featuring DC TIG, pulsed DC TIG, pulsed AC TIG and MMA welding in one unit.
• A 20% Voltage fluctuation safeguard.
• Excellent arc force performance and a wide cleaning range all contributing to high quality welding results.
• The high-frequency, high-voltage arc ignition circuit produces excellent arc-starting at 99.9% success rate which all contribute to its suitability for various types of spot welding.
• Pulsed welding with adjustable pulse frequency ensures the successful welding of thin and varying thickness metal sheets and dissimilar metals. It also meets the requirements for forming double-sided welds.
• In case of wire-spitting during the welding process, a foot control allows current increase resulting in rapid temperature increase. Decreasing the current output allows continuation of a weld seem. Using a foot control adds to welding efficiency, reduces difficulties during the welding process and improves welding quality.

ACCESSORIES

• Earth clamp cable kit.
• Electrode holder cable kit.
• TIG torch.
• Argon flowmeter.
